16-Port 10Gbps 802.3bt PoE++ Managed Injector Hub
16-Port 10Gbps 802.3bt PoE++ Managed Injector Hub
PLANET’s newly launched 10Gbps 802.3bt PoE++ Managed Injector Hub -UPOE-1600XG offers a high-density, rack-mountable solution for rapid 10Gbps PoE++ deployment. It is designed to seamlessly upgrade existing network infrastructures to the IEEE 802.3bt standard without the need to replace current Ethernet Switch devices.
To ensure robust cybersecurity, the 10Gbps 802.3bt PoE++ Managed Injector Hub -UPOE-1600XG features enhanced management functions, including TLSv1.2 and TLSv1.3 protocols.
Furthermore, through integration with PLANET’s NMSViewerPro/CloudNMS apps, all kinds of businesses can efficiently manage their entire network from a single, centralized platform. This 10Gbps 802.3bt PoE++ Managed Injector Hub -UPOE-1600XG also supports PLANET DDNS/Easy DDNS services for flexible remote access.
A Perfect Managed 10G PoE++ Injector Hub with Full Power Budget
The UPOE-1600XG, a high-density, rack-mountable managed IEEE 802.3bt PoE++ injector hub, features PLANET intelligent PoE functions through web user interface for remote management. It provides 16 10/100/1000/2.5G/5G/10GBASE-T Ethernet ports featuring 802.3bt type-4 PoE++ injector with a total PoE budget of 600 watts. Each PoE port can deliver up to 95-watt power over Cat.5/5e/6/7 Ethernet UTP cables which allow data and power to transmit simultaneously to a remote 802.3bt/at powered device (PD).
The UPOE-1600XG enables centralization of the power supply and optimizes the installation and power management of remote network devices, and provides a quick, safe and effective Power over Ethernet network solution for small businesses and enterprises.
|
Model
|
PoE Ports
|
Per PoE Power Output
|
PoE Standard
|
Total PoE Budget
|
|
UPOE-1600XG
|
16
|
95 watts
|
IEEE 802.3bt PoE++ IEEE 802.3at PoE+ |
600 watts
|
802.3bt PoE++ 95-watt Power over 4-pair UTP Solution

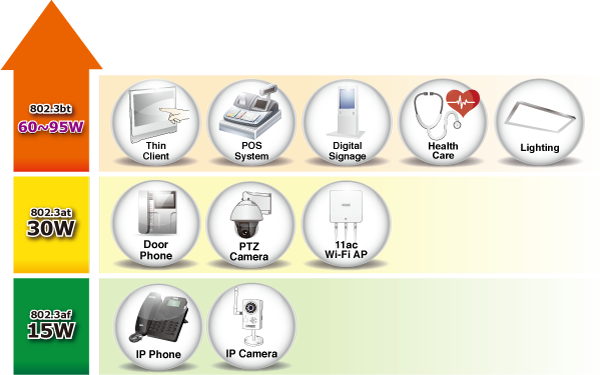

As the UPOE-1600XG adopts the IEEE 802.bt PoE++ standard technology, it is capable to source up to 95 watts of power by using all the four pairs of standard Cat.5/5e/6/7 Ethernet cabling to deliver power and full-speed data to each remote PoE compliant powered device (PD). Its power capability is three times more than that of the conventional 802.3at PoE+ and it is an ideal solution for those high power consuming network PDs, such as:

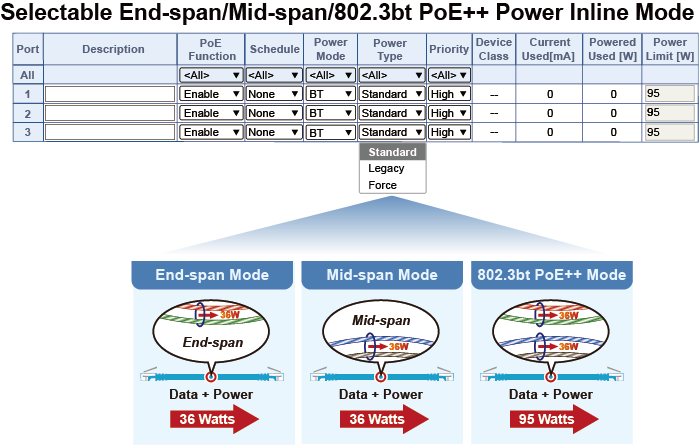

802.3bt PoE++ and Advanced PoE Power Output Mode Management
To meet the demand of various powered devices consuming stable PoE power, the UPOE-1600XG supports multi-PoE operation modes that include 95-watt 802.3bt type-4 PoE++ mode, and 4-pair legacy and force modes to solve the incompatibility of non-standard 4-pair PoE PDs in the field.
|
PoE Watts
|
PoE Operation Mode
|
Power Output Mode
|
|
95W
|
802.3bt PoE++
|
(Pins 1, 2, 3, 6 + Pins 4, 5, 7, 8)
|
|
36W
|
End-span 802.3at PoE
|
(Pins 1, 2, 3, 6)
|
|
36W
|
Mid-span 802.3at PoE
|
(Pins 4, 5, 7, 8)
|

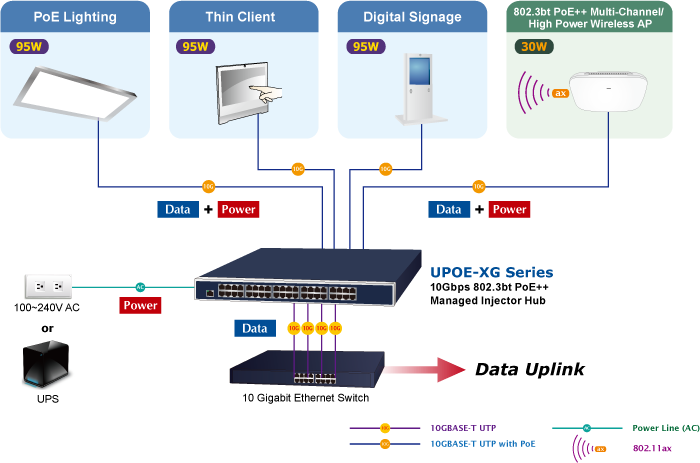

Quick and Easy 802.3bt/at PoE Network Deployment
The UPOE-1600XG is installed between a regular Ethernet Switch and the PDs. There are totally 32 RJ45 STP ports on the front panel of the UPOE-1600XG, of which the 16 ports are on the lower stack functioned as "Data input" while the other 16 ports are on the upper stack functioned as "PoE (Data and Power) output". Both power and data are transferred simultaneously over the UTP cables to PDs without affecting the existing network performance and functions.
With data and Power over Ethernet from one unit, the UPOE-1600XG can reduce power cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
Built-in Unique PoE Functions for Powered Device Management
As it is the 10Gbps Managed PoE++ Injector Hub for surveillance, wireless and VoIP networks, the UPOE-1600XG features the following special PoE management functions:

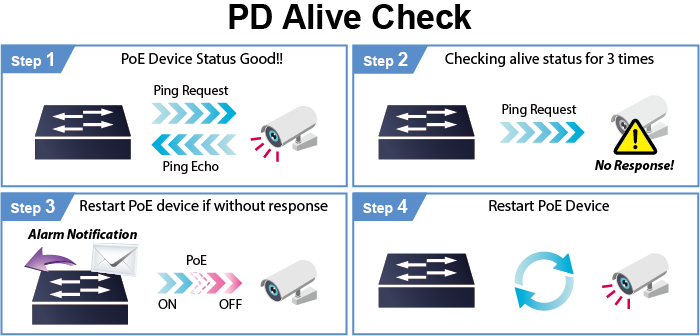

Intelligent Powered Device Alive Check
The UPOE-1600XG can be configured to monitor connected PD status in real time via ping action. Once the PD stops working and responding, the UPOE-1600XG will resume the PoE port power and bring the PD back to work. It will greatly enhance the network reliability through the PoE port resetting the PD’s power source and reducing administrator management burden.

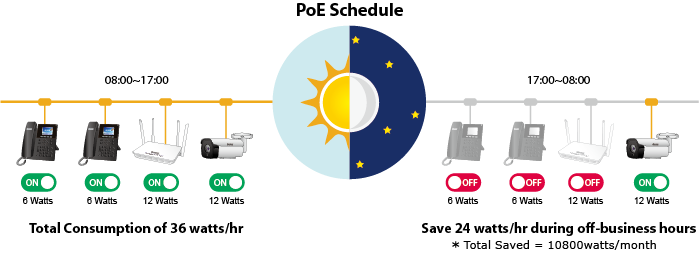

PoE Schedule for Energy Savings
Under the trend of energy savings worldwide and contributing to environmental protection on the Earth, the UPOE-1600XG can effectively control the power supply besides its capability of giving high watts power. The built-in “PoE schedule” function helps you to enable or disable PoE power feeding for each PoE port during specified time intervals and it is a powerful function to help SMBs or enterprises save power and money.
Scheduled Power Rebooting
The UPOE-1600XG can be scheduled to reboot at a specified time like every minute, every hour, every day to reduce the chance of PD device crash resulting from buffer overflow.
PoE Usage Monitoring
Via the power usage chart in the web management interface, the UPOE-1600XG enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.
High Power Budget for PoE Extension
With up to 95-watt PoE output capability, the UPOE-1600XG can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away. By daisy-chaining multiple PLANET 802.3bt PoE++ Extenders, it offers the great flexibility of doubling, tripling or quadrupling the distance of PoE network.
Smart Fan Design for Silent Operation
The UPOE-1600XG features a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE injector hub for optimal power output capability, with low speed and high speed smart fan status display on web interface. The UPOE-1600XG is able to operate reliably, stably and quietly in any environment without affecting its performance.
Cybersecurity Network Solution to Minimize Security Risks
The cybersecurity feature included to protect the UPOE-1600XG management in a mission-critical network virtually needs no effort and cost to install. Both TLSv1.2 and TLSv1.3 protocols are utilized to provide strong protection against advanced threats. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.
User-friendly Web Management Interface
To efficiently manage the PDs, the UPOE-1600XG provides simple Web management interface in which administrators can control the system and PoE functions for PDs. It can automatically detect the power status of each port and show messages on its Web management interface. These features also provide users with a cost-effective way to manage the device via Internet whenever they are at work or at home.
PLANET CloudNMS – Cloud-Based Universal Network Management
PLANET’s CloudNMS platform and mobile app empower IT staff to remotely manage all network devices and Powered Devices (PDs) in real time. Designed for enterprises and industries, CloudNMS minimizes the need for on-site troubleshooting by providing centralized monitoring, fault detection, and instant alerts.
With CloudNMS, businesses can manage diverse network deployments more efficiently, securely, and intelligently—all from a single cloud-based platform.

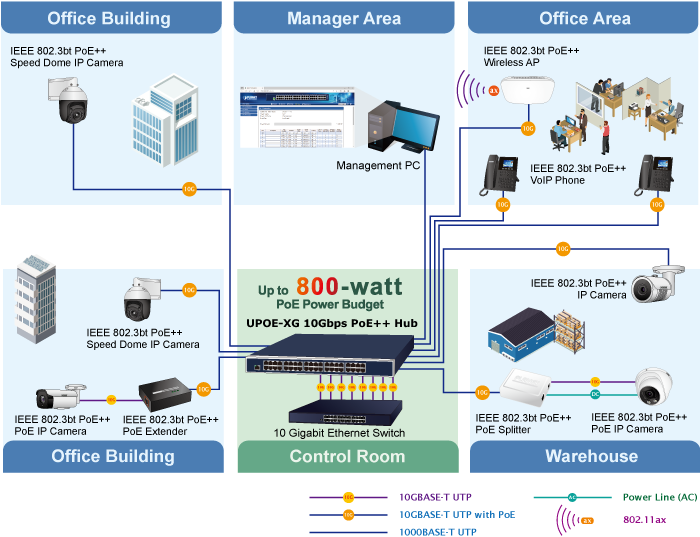

Gigabit PoE++ Network Deployment
The UPOE-1600XG provides the easiest way to power your Ethernet devices such as IP camera on the ceiling and the wireless access point installed on the top of the building. With 16 10/100/1000/2.5G/5G/10GBASE-T Gigabit Ethernet ports, the UPOE-1600XG supports full 54V DC power for any remote IEEE 802.3at/IEEE 802.3bt powered device (PD).
To control the power system of your networking devices, the UPOE-1600XG can directly co-work with network devices such as PoE IP phone to build VoIP telephony network in the office. The UPOE-1600XG can be directly connected to any third-party IEEE 802.3bt and 802.3at PoE compliant devices installed within 100 meters. Furthermore, the UPOE-1600XG can extend much longer distance by using PLANET PoE Extender for powering up the PoE PD which can be installed over more than 100 meters away.
